800G QSFP-DD Transceivers for High-Performance Networks
Reliable, high-density 800G optical connectivity designed for modern data centers, cloud networks, AI and machine-learning fabrics, high-performance computing environments, and switch-to-switch interconnects. The E.C.I. NETWORKS QDD800 delivers 800 Gigabit Ethernet connectivity through eight parallel 100G PAM4 optical lanes operating in the 1310 nm wavelength band.
Key Features
- Hot-pluggable QSFP-DD800 form factor
- 800 Gigabit Ethernet aggregate data rate
- Two independent 400G FR4 optical interfaces
- Eight electrical and optical lanes operating at up to 106.25 Gb/s per lane
- 53.125 GBd PAM4 signaling per lane
- Two groups of four CWDM optical wavelengths
- Nominal wavelengths of 1271, 1291, 1311, and 1331 nm per 400G FR4 interface
- Eight high-performance 100G PAM4 EML transmitters
- Dual duplex LC optical interface
- Up to 2 km transmission over single-mode fiber
- IEEE 802.3cu-2021 alignment
- IEEE 802.3ck-2022 electrical interface alignment
- QSFP-DD MSA compliant
- CMIS Revision 5.1 or later
- Integrated digital diagnostic monitoring
- Two-wire I²C management interface
- Single 3.3 V power supply
- Maximum power consumption of 14 W
- Commercial operating temperature: 0°C to +70°C
- Storage temperature: −40°C to +85°C
- International Class 1 laser safety certified
- RoHS 6.0 compliant
800G QSFP-DD 2×400G FR4 Optical Transceiver
The EN-QDD800-2FR4 is an 800GbE QSFP-DD800 optical transceiver designed for single-mode fiber links up to 2 km. The module incorporates two independent 400G FR4 optical engines within one QSFP-DD800 package.
The module converts eight PAM4 electrical input lanes, each operating at up to 106.25 Gb/s, into eight optical signals organized as two groups of four CWDM wavelengths. Within each 400G FR4 interface, the four optical wavelengths are multiplexed onto one transmit fiber. On the receiver side, the incoming wavelengths are demultiplexed from one receive fiber and converted into four PAM4 electrical output lanes.
| Parameter | Specification | Parameter | Specification |
|---|---|---|---|
| Part Number | EN-QDD800-2FR4 | Product Type | 800G QSFP-DD800 2×400G FR4 optical transceiver |
| Form Factor | Hot-pluggable QSFP-DD800 | Host Connector | 76-position QSFP-DD host interface |
| Aggregate Data Rate | 800Gb/s | Optical Interfaces | Two independent 400G FR4 interfaces |
| Per-Lane Data Rate | Up to 106.25 Gb/s PAM4 | Signaling Rate | 53.125 GBd per lane, ±100 ppm |
| Electrical Lane Configuration | Eight PAM4 host lanes | Optical Lane Configuration | Eight optical lanes arranged as two four-lane CWDM groups |
| Modulation | PAM4 | Optical Architecture | Two independent CWDM4 multiplexed optical engines |
| Standards Compliance | IEEE 802.3cu-2021, IEEE 802.3ck-2022, QSFP-DD MSA and CMIS 5.1 or later | Application | 800G Ethernet using 2×400G FR4 |
| Nominal Wavelengths | 1271, 1291, 1311 and 1331 nm per 400G interface | Number of Wavelengths | Four wavelengths per 400G engine; eight optical lanes total |
| Wavelength Ranges | 1264.5–1277.5 nm, 1284.5–1297.5 nm, 1304.5–1317.5 nm and 1324.5–1337.5 nm | Wavelength Multiplexing | Four CWDM wavelengths multiplexed onto each transmit fiber |
| Transmitter Type | Eight 100G PAM4 EML transmitters | Detector Type | Eight photodiode receivers |
| Optical Connector | Dual duplex LC receptacles | Fiber Type | Single-mode fiber |
| Fiber Count | Four fibers: two transmit and two receive | Maximum Reach | Up to 2 km over SMF |
| Link Configuration | Two independent duplex SMF links | Typical Cabling | Two duplex LC-to-LC single-mode patch cables |
| Average Transmit Power | −3.2 to +4.4 dBm per optical lane | Total Average Launch Power | Maximum 10.4 dBm |
| Maximum Transmitter OMAouter | +3.7 dBm per lane | Maximum TDECQ | 3.4 dB |
| Minimum Transmitter OMAouter | −0.2 dBm for TDECQ below 1.4 dB; otherwise TDECQ − 1.6 dBm | Transmitter Power Difference | Maximum 3.9 dB OMAouter between any two lanes |
| Extinction Ratio | Minimum 3.5 dB per lane | Side-Mode Suppression Ratio | Minimum 30 dB |
| Transmitter Reflectance | Maximum −26 dB | Optical Return-Loss Tolerance | 17.1 dB |
| Average Receive Power | −7.2 to +4.4 dBm per lane | Receiver Damage Threshold | +5.4 dBm per lane |
| Maximum Receive OMAouter | +3.7 dBm per lane | Receiver Reflectance | Maximum −26 dB |
| Receiver Sensitivity | −4.6 dBm OMAouter for TECQ below 1.4 dB; otherwise TECQ − 6 dBm | Stressed Receiver Sensitivity | −2.6 dBm OMAouter per lane |
| Maximum SECQ | 3.4 dB | Aggressor-Lane OMAouter | 1.4 dBm |
| Approximate Optical Budget | Approximately 4.0 dB based on average transmit and receive power limits | Sensitivity Test BER | Receiver sensitivity listed at BER 2 × 10⁻⁴ |
| FEC | Not specified in the module datasheet; configure according to host-platform and 400G FR4 requirements | Breakout Capability | Platform-dependent 800G to 2×400G FR4 operation |
| Breakout Connections | Two independent duplex LC 400G connections | Breakout Cabling | Two duplex LC-to-LC SMF patch cables |
| Management Interface | Two-wire I²C interface | Management Standard | CMIS Revision 5.1 or later |
| Digital Diagnostics | Integrated DDM/DOM functionality | I²C Clock Frequency | 100 to 1000 kHz |
| Power Supply | 3.3 V nominal | Supply Range | 3.135 to 3.465 V |
| Maximum Power Consumption | 14 W | Operating Temperature | 0°C to +70°C |
| Storage Temperature | −40°C to +85°C | Relative Humidity | 5% to 85% |
| Laser Safety | International Class 1 laser product | Environmental Compliance | RoHS 6.0 |
| Recommended Cable | Two duplex single-mode LC-to-LC patch cables | Primary Applications | Data centers, AI fabrics, HPC networks, switch and router interconnects |
Connectivity examples

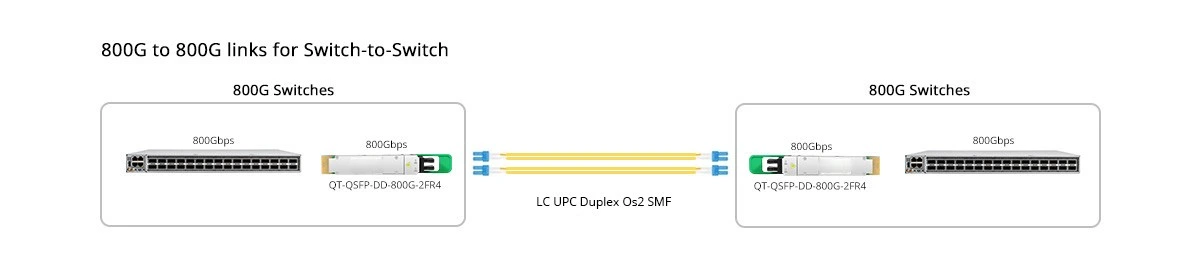

800G to 800G Direct Connectivity

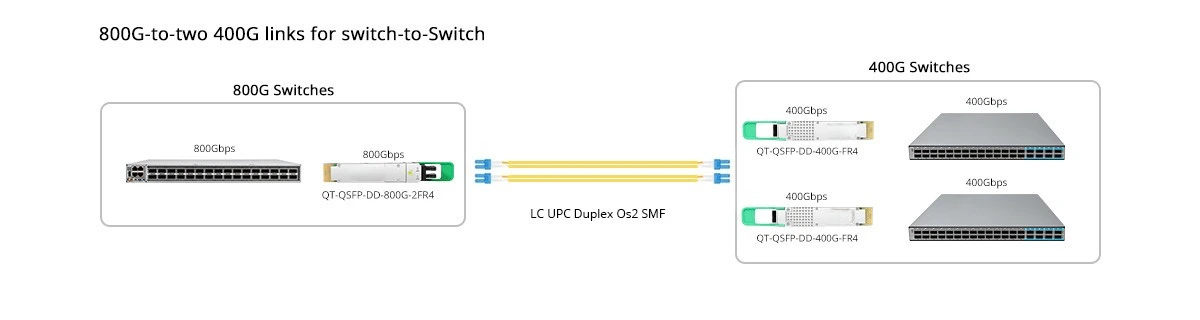

800G to 2x 400GE Breakout Connectivity
Selection Guide
Which 100G Transceiver Should I Choose? Selecting the right 100G transceiver depends on distance, fiber type, and infrastructure. Use the guide below to quickly identify the best option for your deployment.
| Selection Criteria | Option | Recommended Transceiver | Fiber / Connector | Typical Use Case |
|---|---|---|---|---|
| Host Form Factor | QSFP-DD800 | QDD800-DR8-M16, QSFP-DD800 SR8, 2 × FR4 or 2 × LR4 | 76-position QSFP-DD host interface | High-density switches, routers, cloud platforms and AI fabrics |
| Host Form Factor | OSFP | OSFP DR8, SR8, 2 × FR4, 2 × LR4 or coherent optics | OSFP host interface; not interchangeable with QSFP-DD800 | Platforms designed specifically for OSFP modules |
| Distance | Up to 50 m | 800GBASE-VR8 or short-reach SR8 | OM4/OM5 multimode fiber; MPO-16 or dual MPO-12 depending on module | In-rack, adjacent-rack and short-row connections |
| Distance | Up to 100 m | 800GBASE-SR8 | OM4/OM5 multimode fiber; parallel MPO interface | Short-reach data-center and AI-cluster connections |
| Distance | Up to 500 m | 800GBASE-DR8 | Parallel OS2 SMF; single MPO-16/APC | Leaf-spine, switch-to-switch, aggregation and high-density breakout |
| Distance | Up to 2 km | 800GBASE-DR8-2 or 800G 2 × 400GBASE-FR4 | Parallel SMF with MPO or two duplex SMF connections with LC, depending on architecture | Large data centers, campus links and short-reach DCI |
| Distance | Up to 10 km | 800G 2 × 400GBASE-LR4 | Single-mode fiber; normally two duplex LC connections | Campus, metro-access and inter-building connections |
| Distance | Up to approximately 120 km | 800ZR coherent optic, where supported | Duplex SMF LC; amplified DWDM network | Data-center interconnect and metro DWDM |
| Distance | Extended metro or regional | 800G ZR+ coherent optic, where supported | Duplex SMF LC with compatible line system | Metro, regional and long-haul transport |
| Fiber Type | Multimode OM4/OM5 | VR8 or SR8 | MPO-16 or dual MPO-12 | Short-reach data-center deployments |
| Fiber Type | Parallel single-mode OS2 | DR8 or DR8-2 | MPO-16/APC or dual MPO-12/APC | 500 m to 2 km parallel-fiber links and breakout-heavy designs |
| Fiber Type | Duplex single-mode OS2 | 2 × FR4, 2 × LR4, ZR or ZR+ | Duplex LC or dual duplex LC | WDM, campus, DCI and transport applications |
| Connector Type | MPO-16/APC | DR8 | Sixteen parallel SMF fibers | Direct 800G links and high-density breakout |
| Connector Type | Dual MPO-12/APC | Selected DR8, SR8 and 2 × DR4 implementations | Two independent eight-fiber optical interfaces | Dual-400G connections and modular cabling systems |
| Connector Type | Dual Duplex LC | 800G 2 × FR4 or 2 × LR4 | Two separate duplex SMF pairs | Two independent 400G WDM connections |
| Optical Technology | 8 × 100G PAM4 parallel optics | DR8 and SR8 | MPO parallel-fiber interface | Lowest-complexity 800G data-center links |
| Optical Technology | Dual 400G WDM engines | 2 × FR4 or 2 × LR4 | Dual duplex LC | Reuse of duplex-fiber infrastructure |
| Optical Technology | Coherent DWDM | 800ZR and 800G ZR+ | Duplex LC with DWDM line system | Metro, DCI and regional transport |
| Breakout Capability | 800G to 2 × 400G | DR8 to two DR4 interfaces | MPO-16/APC to two MPO-12/APC assemblies | Connecting an 800G spine port to two 400G devices |
| Breakout Capability | 800G to 4 × 200G | DR8 to four DR2 interfaces | MPO-16/APC breakout assembly | High-density NIC and accelerator connectivity |
| Breakout Capability | 800G to 8 × 100G | DR8 to eight DR1 interfaces | MPO-16/APC to eight duplex-LC connections | Connecting an 800G switch port to eight 100G endpoints |
| Power and Thermal | Maximum 14 W | DR8-M16 | Host must support the applicable QSFP-DD power class and airflow | High-density 800G switching environments |
| Power and Thermal | Higher thermal budget | WDM and coherent 800G optics | Platform-specific cooling and power requirements | Longer-distance and coherent applications |
