800G QSFP-DD Transceivers for High-Performance Networks
Reliable, high-density 800G optical connectivity designed for modern data centers, cloud networks, AI and machine-learning fabrics, high-performance computing environments, and switch-to-switch interconnects. The E.C.I. NETWORKS QDD800 delivers 800 Gigabit Ethernet connectivity through eight parallel 100G PAM4 optical lanes operating in the 1310 nm wavelength band.
Key Features
- Hot-pluggable QSFP-DD800 form factor
- 800 Gigabit Ethernet data rate
- Eight electrical and optical lanes operating at up to 106.25 Gb/s per lane
- 53.125 GBd PAM4 signaling per lane
- Eight parallel 1310 nm transmit and receive optical channels
- Eight high-performance EML transmitters
- Single MPO-16/APC optical interface
- Up to 500 m transmission over parallel single-mode fiber
- IEEE 802.3df-2024 800GBASE-DR8 application
- IEEE 802.3cu-2021 and IEEE 802.3ck-2022 alignment
- QSFP-DD MSA Revision 6.3 compliant
- CMIS Revision 5.1 or later
- Integrated digital diagnostic monitoring
- Two-wire I²C management interface
- Single 3.3 V power supply
- Maximum power consumption of 14 W
- Commercial operating temperature: 0°C to +70°C
- Storage temperature: −40°C to +85°C
- International Class 1 laser safety certified
- RoHS 6.0 compliant

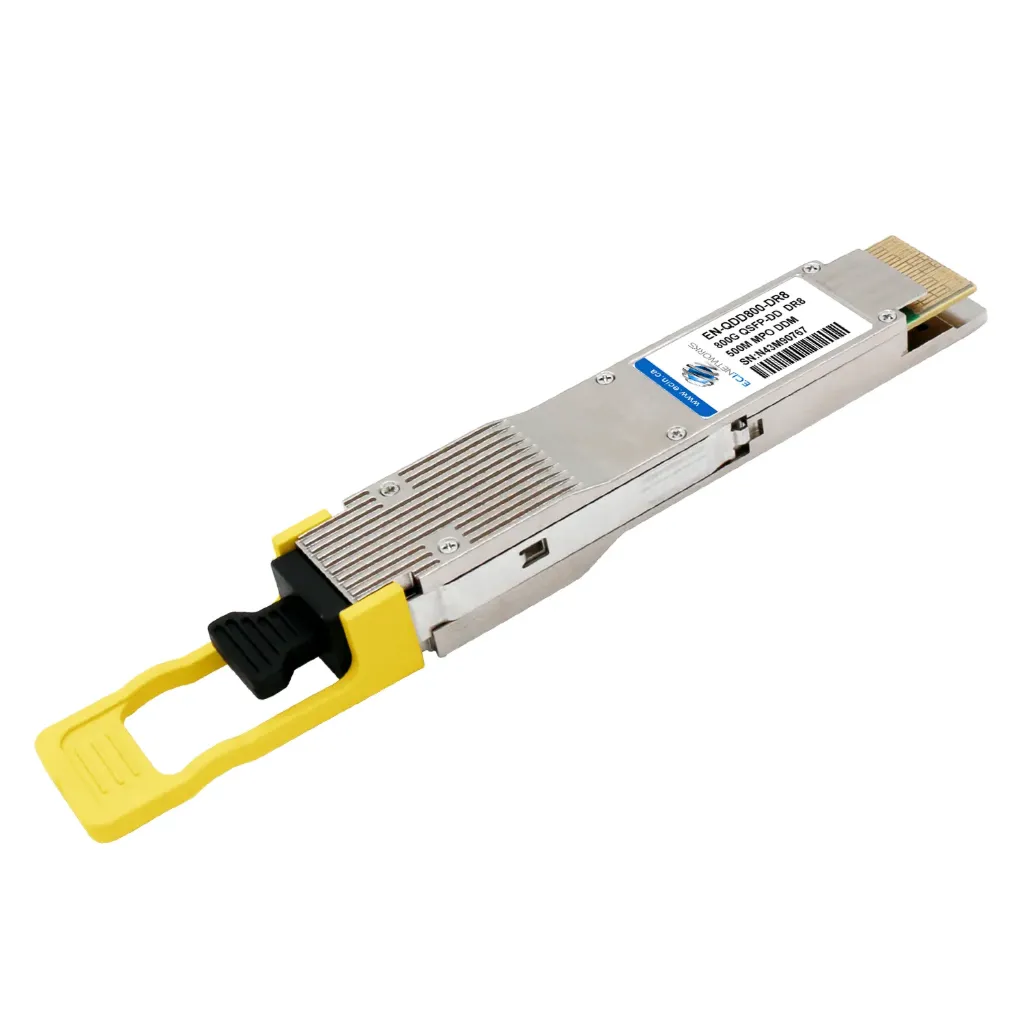

800G QSFP-DD DR8 Optical Transceiver
The EN-QDD800-DR8-M16 is an 800GbE QSFP-DD800 optical transceiver designed for parallel single-mode fiber links up to 500 m. The module converts eight electrical PAM4 input lanes, each operating at up to 106.25 Gb/s, into eight parallel optical signals in the 1310 nm wavelength band. Each optical signal is transmitted over a separate single-mode fiber. On the receiver side, eight parallel optical inputs are converted back into eight PAM4 electrical output lanes.
| Parameter | Specification | Parameter | Specification |
|---|---|---|---|
| Part Number | EN-QDD800-DR8-M16 | Product Type | 800GBASE-DR8 optical transceiver |
| Form Factor | Hot-pluggable QSFP-DD800 | Host Connector | 76-position QSFP-DD host interface |
| Ethernet Data Rate | 800GbE | Lane Configuration | 8 electrical lanes and 8 optical lanes in each direction |
| Per-Lane Data Rate | Up to 106.25 Gb/s PAM4 | Signaling Rate | 53.125 GBd per lane, ±50 ppm optical and ±100 ppm electrical |
| Modulation | PAM4 | Optical Architecture | Eight parallel optical channels; no optical wavelength multiplexing |
| Standards Compliance | IEEE 802.3df-2024, IEEE 802.3cu-2021, IEEE 802.3ck-2022, QSFP-DD MSA 6.3 and CMIS 5.1 or later | Application | 800GBASE-DR8 Ethernet |
| Nominal Wavelength | 1310 nm | Wavelength Range | 1304.5 to 1317.5 nm |
| Transmitter Type | Eight EML transmitters | Detector Type | Eight photodiode receivers |

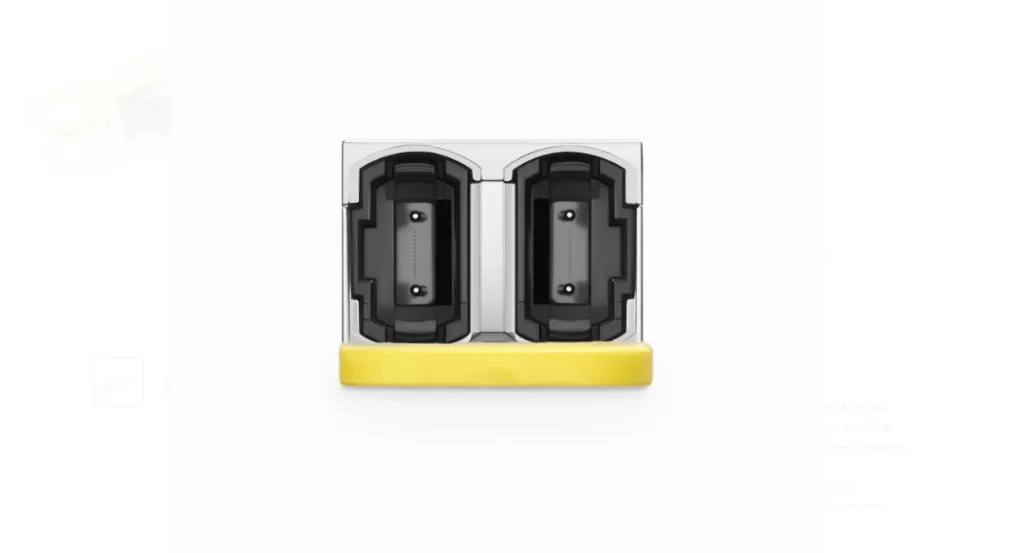

| Optical Connector | Single MPO-16/APC receptacle | Connector Polish | 8-degree angled physical contact |
| Fiber Type | Parallel single-mode fiber, OS2 / G.652-compatible | Fiber Count | 16 fibers: 8 transmit and 8 receive |
| Maximum Reach | Up to 500 m over SMF | Link Configuration | Point-to-point parallel optical connection |
| Average Transmit Power | −2.9 to +4.0 dBm per lane | Transmitter OMAouter | Up to +4.2 dBm per lane |
| Minimum Transmitter OMAouter | −0.8 dBm for TDECQ below 1.4 dB; otherwise TDECQ − 2.2 dBm | Maximum TDECQ | 3.4 dB |
| Extinction Ratio | Minimum 3.5 dB | Side-Mode Suppression Ratio | Minimum 30 dB |
| Average Receive Power | −5.9 to +4.0 dBm per lane | Receiver Damage Threshold | +5 dBm per lane |
| Receiver Sensitivity | −3.9 dBm OMAouter for TECQ below 1.4 dB; otherwise TECQ − 5.3 dBm | Stressed Receiver Sensitivity | −1.9 dBm OMAouter |
| Approximate Optical Budget | Approximately 3.0 to 3.1 dB per lane based on minimum transmit and receive limits | Receiver Reflectance | Maximum −26 dB |
| FEC | FEC is handled by the host Ethernet platform; no internal FEC is specified in the module datasheet | Sensitivity Test BER | Receiver sensitivity specified at BER 2 × 10⁻⁴ |
| Breakout Capability | Platform-dependent 2 × 400G DR4, 4 × 200G DR2, or 8 × 100G DR1 | Breakout Cabling | MPO-16/APC to dual MPO-12/APC or MPO-16/APC to multiple duplex-LC assemblies, as required |
| Management Interface | Two-wire I²C interface | Management Standard | CMIS Revision 5.1 or later |
| Digital Diagnostics | Integrated DDM/DOM functionality | I²C Clock Frequency | 100 to 1000 kHz |
| Power Supply | 3.3 V nominal | Supply Range | 3.135 to 3.465 V |
| Maximum Power Consumption | 14 W | Operating Temperature | 0°C to +70°C |
| Storage Temperature | −40°C to +85°C | Relative Humidity | 5% to 85% |
| Laser Safety | International Class 1 laser product | Environmental Compliance | RoHS 6.0 |
| Recommended Cable | 16-fiber parallel SMF cable with MPO-16/APC connectors | Primary Applications | Data centers, AI fabrics, HPC networks, switch and router interconnects |
Connectivity examples

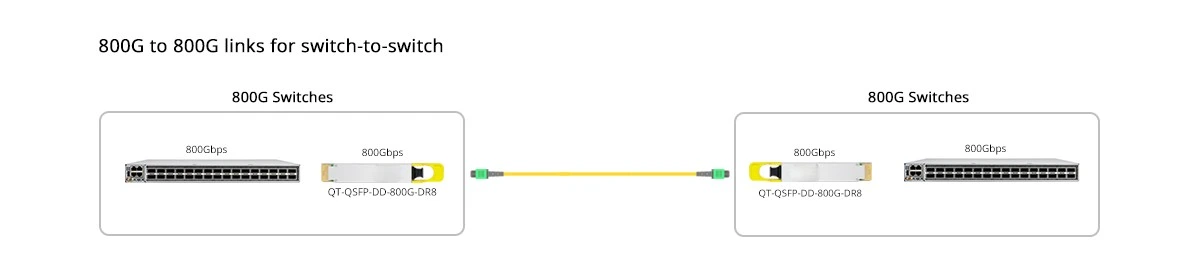

800G to 800G Direct Connectivity

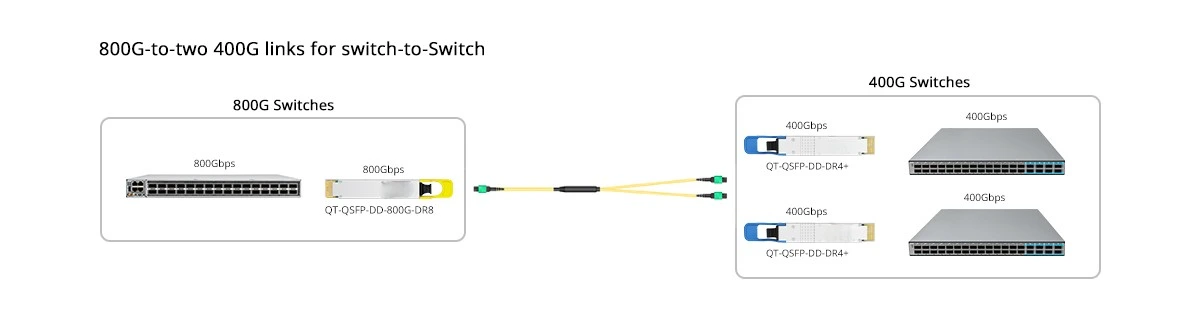

800G to 2x 400GE Breakout Connectivity

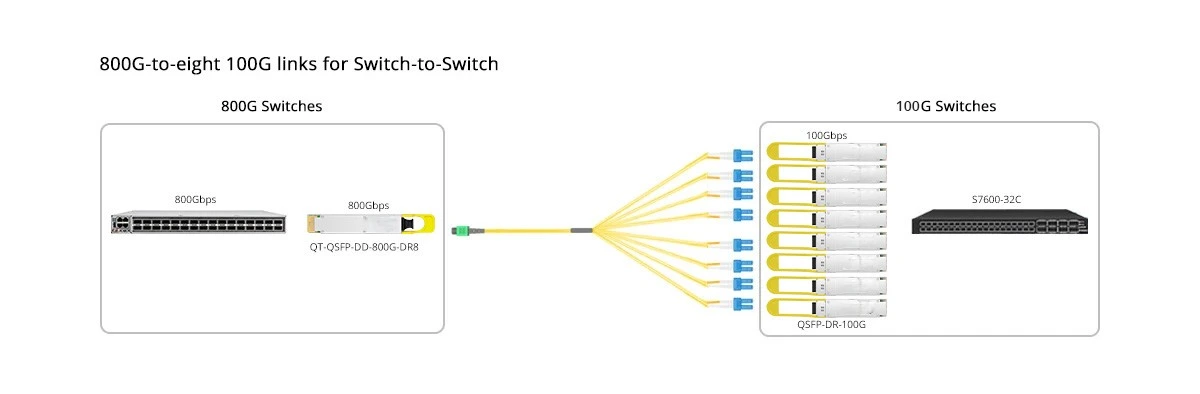

800G to 8x 100GE Breakout Connectivity
Selection Guide
Which 100G Transceiver Should I Choose? Selecting the right 100G transceiver depends on distance, fiber type, and infrastructure. Use the guide below to quickly identify the best option for your deployment.
| Selection Criteria | Option | Recommended Transceiver | Fiber / Connector | Typical Use Case |
|---|---|---|---|---|
| Host Form Factor | QSFP-DD800 | QDD800-DR8-M16, QSFP-DD800 SR8, 2 × FR4 or 2 × LR4 | 76-position QSFP-DD host interface | High-density switches, routers, cloud platforms and AI fabrics |
| Host Form Factor | OSFP | OSFP DR8, SR8, 2 × FR4, 2 × LR4 or coherent optics | OSFP host interface; not interchangeable with QSFP-DD800 | Platforms designed specifically for OSFP modules |
| Distance | Up to 50 m | 800GBASE-VR8 or short-reach SR8 | OM4/OM5 multimode fiber; MPO-16 or dual MPO-12 depending on module | In-rack, adjacent-rack and short-row connections |
| Distance | Up to 100 m | 800GBASE-SR8 | OM4/OM5 multimode fiber; parallel MPO interface | Short-reach data-center and AI-cluster connections |
| Distance | Up to 500 m | 800GBASE-DR8 | Parallel OS2 SMF; single MPO-16/APC | Leaf-spine, switch-to-switch, aggregation and high-density breakout |
| Distance | Up to 2 km | 800GBASE-DR8-2 or 800G 2 × 400GBASE-FR4 | Parallel SMF with MPO or two duplex SMF connections with LC, depending on architecture | Large data centers, campus links and short-reach DCI |
| Distance | Up to 10 km | 800G 2 × 400GBASE-LR4 | Single-mode fiber; normally two duplex LC connections | Campus, metro-access and inter-building connections |
| Distance | Up to approximately 120 km | 800ZR coherent optic, where supported | Duplex SMF LC; amplified DWDM network | Data-center interconnect and metro DWDM |
| Distance | Extended metro or regional | 800G ZR+ coherent optic, where supported | Duplex SMF LC with compatible line system | Metro, regional and long-haul transport |
| Fiber Type | Multimode OM4/OM5 | VR8 or SR8 | MPO-16 or dual MPO-12 | Short-reach data-center deployments |
| Fiber Type | Parallel single-mode OS2 | DR8 or DR8-2 | MPO-16/APC or dual MPO-12/APC | 500 m to 2 km parallel-fiber links and breakout-heavy designs |
| Fiber Type | Duplex single-mode OS2 | 2 × FR4, 2 × LR4, ZR or ZR+ | Duplex LC or dual duplex LC | WDM, campus, DCI and transport applications |
| Connector Type | MPO-16/APC | DR8 | Sixteen parallel SMF fibers | Direct 800G links and high-density breakout |
| Connector Type | Dual MPO-12/APC | Selected DR8, SR8 and 2 × DR4 implementations | Two independent eight-fiber optical interfaces | Dual-400G connections and modular cabling systems |
| Connector Type | Dual Duplex LC | 800G 2 × FR4 or 2 × LR4 | Two separate duplex SMF pairs | Two independent 400G WDM connections |
| Optical Technology | 8 × 100G PAM4 parallel optics | DR8 and SR8 | MPO parallel-fiber interface | Lowest-complexity 800G data-center links |
| Optical Technology | Dual 400G WDM engines | 2 × FR4 or 2 × LR4 | Dual duplex LC | Reuse of duplex-fiber infrastructure |
| Optical Technology | Coherent DWDM | 800ZR and 800G ZR+ | Duplex LC with DWDM line system | Metro, DCI and regional transport |
| Breakout Capability | 800G to 2 × 400G | DR8 to two DR4 interfaces | MPO-16/APC to two MPO-12/APC assemblies | Connecting an 800G spine port to two 400G devices |
| Breakout Capability | 800G to 4 × 200G | DR8 to four DR2 interfaces | MPO-16/APC breakout assembly | High-density NIC and accelerator connectivity |
| Breakout Capability | 800G to 8 × 100G | DR8 to eight DR1 interfaces | MPO-16/APC to eight duplex-LC connections | Connecting an 800G switch port to eight 100G endpoints |
| Power and Thermal | Maximum 14 W | DR8-M16 | Host must support the applicable QSFP-DD power class and airflow | High-density 800G switching environments |
| Power and Thermal | Higher thermal budget | WDM and coherent 800G optics | Platform-specific cooling and power requirements | Longer-distance and coherent applications |
